Copper pipes have been a trusted choice in plumbing and HVAC systems for years, thanks to their strength, corrosion resistance, and long lifespan. Whether you’re installing a new water line or replacing old pipes, selecting the right copper pipe sizes is essential for efficiency and proper water flow. Copper pipes come in different types and thicknesses, each suited for specific applications. Residential plumbing typically uses Type L or Type M, while Type K is reserved for underground or high-pressure systems. Understanding the right copper pipe sizes and type ensures a durable, leak-free installation. With the right choice, copper piping can last for decades.
1. Why Use Copper Pipes?
Copper pipes have been a trusted choice in plumbing and HVAC systems for decades due to their durability, corrosion resistance, and efficiency. Unlike other materials, copper does not rust, ensuring a longer lifespan for water supply lines. It withstands extreme temperatures, making it ideal for both hot and cold water applications. Additionally, copper is naturally antimicrobial, reducing the risk of bacterial growth in drinking water. Its recyclability also makes it an environmentally friendly option. With minimal maintenance and a proven track record of reliability, copper pipes remain a top choice for homeowners and professionals seeking a long-lasting plumbing solution.
Copper pipes are a preferred choice for water pipes, gas lines, and HVAC systems. Here’s why:
- Durability – Copper pipes can last over 50 years.
- Corrosion Resistance – Unlike steel, copper does not rust.
- Heat and Pressure Tolerance – Ideal for hot and cold water lines.
- Eco-Friendly – 100% recyclable and sustainable.
- Bacteria Resistance – Reduces the risk of contamination in drinking water.

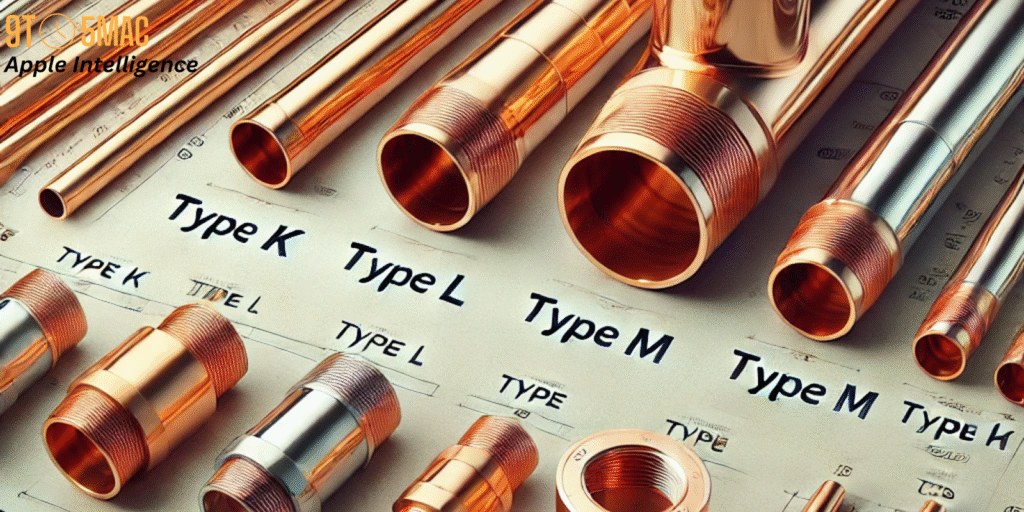

2. Types of Copper Pipes and Their Applications
Copper pipes come in different types, each designed for specific applications based on thickness and durability. Type K has the thickest walls and is commonly used for underground water lines and high-pressure systems. Type L, slightly thinner, is ideal for residential and commercial plumbing, balancing strength and affordability. Type M, the most lightweight, is suited for low-pressure applications like heating systems. For non-pressurized drainage systems, DWV copper pipes are the preferred choice. Selecting the right type ensures efficiency, longevity, and compliance with plumbing standards, making copper a versatile and reliable option for various water and HVAC installations.
Copper pipes are classified based on their wall thickness. The three main types are:
Type K Copper Pipe
- Thickest wall thickness.
- Used for underground water lines, high-pressure applications, and fire protection systems.
Type L Copper Pipe
- Medium wall thickness, commonly used in residential plumbing.
- Ideal for water supply lines and HVAC systems.
Type M Copper Pipe
- Thinner walls than Type L, making it more affordable.
- Best for low-pressure water systems and heating applications.
DWV Copper Pipe (Drain, Waste, Vent)
- Designed for non-pressurized drainage systems.
- Not used for water supply.
Each type serves a specific purpose, ensuring optimal performance based on plumbing standards and system requirements.
3. Understanding Copper Pipe Sizes
Copper pipe sizes can be confusing because they are measured differently than other plumbing materials. The two main measurements used are nominal pipe size (NPS) and outer diameter (OD). While the nominal size refers to the approximate inside diameter, the outer diameter remains consistent regardless of the pipe type. For example, a ½-inch copper pipe actually has an OD of 0.625 inches. Pipe sizing is crucial for ensuring proper water flow, pressure management, and fitting compatibility. Choosing the correct size prevents leaks, improves efficiency, and ensures compliance with plumbing standards, making it essential for both residential and commercial installations.
Copper pipe sizes are measured using two methods:
- Nominal Pipe Size (NPS) – Commonly used in North America.
- Outer Diameter (OD) – Includes the pipe wall thickness.
For example:
- A ½-inch copper pipe has an actual OD of 0.625 inches.
- A ¾-inch pipe has an OD of 0.875 inches.
Understanding these measurements ensures you select the right size for your project.
4. Copper Pipe Dimensions and Measurements
Copper pipe dimensions vary based on their type and intended use, with sizes typically measured by outer diameter (OD) and wall thickness. While the nominal pipe size (NPS) provides a general reference, the actual OD remains consistent. Different types, such as K, L, and M, have varying wall thicknesses, affecting durability and pressure capacity. For example, a ¾-inch pipe has an OD of 0.875 inches, but its thickness depends on the type. Understanding these measurements is crucial for selecting the right pipe for water supply, HVAC, or gas lines, ensuring proper fit, pressure regulation, and long-term system efficiency.
Here’s a standard copper pipe sizing chart for reference:
| Nominal Size | Outer Diameter (OD) | Wall Thickness (Type K) | Wall Thickness (Type L) | Wall Thickness (Type M) |
| ¼ inch | 0.375 inches | 0.035 inches | 0.030 inches | 0.025 inches |
| ⅜ inch | 0.500 inches | 0.049 inches | 0.035 inches | 0.025 inches |
| ½ inch | 0.625 inches | 0.049 inches | 0.040 inches | 0.028 inches |
| ¾ inch | 0.875 inches | 0.065 inches | 0.045 inches | 0.032 inches |
| 1 inch | 1.125 inches | 0.065 inches | 0.050 inches | 0.035 inches |
Each pipe thickness impacts pressure capacity and durability.
5. Pipe Thickness and Pressure Ratings
The thickness of a copper pipe plays a crucial role in its pressure-handling capacity and overall durability. Thicker pipes, such as Type K, can withstand higher pressures, making them ideal for underground and high-pressure applications. Type L, with moderate thickness, is commonly used in residential plumbing, offering a balance between strength and cost. Type M, the thinnest, is suitable for low-pressure systems like heating applications. Pressure ratings vary based on pipe size and type, with thicker walls ensuring better resistance to bursting. Choosing the right pipe thickness ensures longevity, prevents leaks, and maintains optimal water flow in plumbing systems.
The thicker the pipe wall, the higher the pressure it can handle.
| Copper Pipe Type | Maximum Pressure (PSI) |
|---|---|
| Type K (½ inch) | 1,270 PSI |
| Type L (½ inch) | 1,040 PSI |
| Type M (½ inch) | 700 PSI |
For high-pressure systems, always choose Type K or Type L pipes.
6. Copper Pipe Fittings and Connections
Copper pipe fittings and connections are essential for creating a secure and efficient plumbing system. Various fittings, including couplings, elbows, tees, and reducers, allow pipes to connect, change direction, or transition between different sizes. Soldering, also known as sweating, is a common method for joining copper pipes, creating a strong, leak-proof bond. Compression fittings and push-to-connect fittings offer simpler, solder-free alternatives for quick installations. Properly selecting and installing fittings ensures durability, prevents leaks, and maintains water pressure. Whether for residential or commercial plumbing, using the right connections is key to a reliable and long-lasting copper pipe system.
To ensure a secure and leak-proof system, plumbing fittings are essential.
Common Copper Pipe Fittings
- Couplings – Connect two pipes.
- Elbows – Change the direction of flow.
- Tees – Create branch connections.
- Reducers – Connect different pipe sizes.
For a strong connection, use soldering (sweating), compression fittings, or push-to-connect fittings.
7. Plumbing Standards for Copper Pipes
Plumbing standards for copper pipes ensure safety, efficiency, and compliance in residential and commercial systems. Organizations like ASTM, NSF, and local building codes regulate pipe quality, dimensions, and installation practices. ASTM B88 sets specifications for Types K, L, and M, defining their thickness and pressure ratings. NSF certifications confirm pipes are safe for drinking water. Local codes dictate proper installation, including joint methods, support spacing, and corrosion prevention. Following these standards guarantees durability, leak-free connections, and optimal water flow. Compliance not only enhances system performance but also prevents costly repairs and ensures longevity in plumbing and HVAC applications.
Copper pipes must adhere to international plumbing codes:
- ASTM B88 – Covers seamless copper water tubes.
- ASME B16.22 – Standard for copper fittings.
- UPC (Uniform Plumbing Code) – Regulations for pipe installation.
Following these plumbing standards ensures compliance and safety.
8. Pipe Installation Tips
Proper copper pipe installation is key to a reliable plumbing system. Measuring and cutting pipes accurately ensures a precise fit, while deburring the edges prevents leaks and blockages. Soldering requires cleaning the pipe ends and fittings, applying flux, and using the right amount of heat for a secure bond. Compression and push-to-connect fittings offer quick, solder-free alternatives. Supporting pipes with brackets prevents sagging and reduces stress on joints. Ensuring proper pipe slope aids drainage in HVAC and plumbing systems. Following best practices and local codes guarantees a long-lasting, efficient installation with minimal maintenance and optimal water flow.
Proper pipe installation is crucial for long-term efficiency. Here are some tips:
✅ Measure and Cut Precisely – Use a pipe cutter for clean edges.
✅ Deburr the Edges – Smooth out rough edges to prevent leaks.
✅ Use the Right Fittings – Choose fittings based on pipe size and type.
✅ Secure Joints Properly – Solder or use compression fittings for tight seals.
✅ Pressure Test Before Use – Check for leaks before finalizing installation.
Following these plumbing tips ensures a smooth and effective installation process.
9. Common Mistakes to Avoid
Avoiding common mistakes in copper pipe installation ensures a durable and leak-free system. One major error is improper soldering, where insufficient cleaning or excessive heat weakens joints. Cutting pipes without deburring leads to rough edges that can cause leaks or blockages. Using the wrong pipe type for water pressure needs may result in failures over time. Poor support or spacing can cause sagging, leading to stress on joints. Neglecting expansion allowances in long pipe runs may cause damage due to temperature changes. Following proper techniques and plumbing codes prevents costly repairs and ensures an efficient, long-lasting plumbing system.
❌ Using the Wrong Pipe Type – Type M is not suitable for high-pressure systems.
❌ Incorrect Soldering – Overheating can weaken joints.
❌ Ignoring Pipe Expansion – Copper expands with temperature changes.
❌ Not Checking for Corrosion – Hard water can degrade pipes over time.
Avoiding these mistakes improves the lifespan of copper pipes and prevents costly repairs.
10. Final Thoughts
Copper pipes remain a top choice for plumbing and HVAC systems due to their durability, corrosion resistance, and long lifespan. Understanding the different types, sizes, and installation techniques ensures a reliable and efficient system. Choosing the right fittings, following plumbing standards, and avoiding common mistakes can prevent leaks and costly repairs. Proper maintenance and installation practices enhance performance and longevity, making copper a worthwhile investment. Whether for residential or commercial use, copper piping continues to be a trusted material for safe and efficient water distribution. By following best practices, homeowners and professionals can ensure a high-quality plumbing system.
Key Takeaways
✔ Choose the right copper pipe type based on application.
✔ Use proper pipe sizing to prevent pressure loss.
✔ Follow plumbing standards for safety and compliance.
✔ Secure pipe fittings properly to prevent leaks.
By following these guidelines, you can ensure a successful copper pipe installation that lasts for decades.
Conclusion
Copper pipes remain one of the best choices for plumbing and HVAC systems due to their durability, corrosion resistance, and efficiency. Understanding copper pipe sizes, types, and proper installation methods is crucial for creating a long-lasting system. Choosing the right pipe size ensures proper water flow, prevents pressure issues, and meets plumbing standards. Whether for residential or commercial use, copper pipes offer reliability and sustainability. By following best practices, using the correct fittings, and adhering to local plumbing codes, you can achieve a leak-free and efficient piping system that lasts for decades.
FAQs
1. What are the standard copper pipe sizes?
Copper pipe sizes vary by type, but common nominal sizes include ½-inch, ¾-inch, and 1-inch. The outer diameter (OD) is slightly larger than the nominal size.
2. How do I choose the right copper pipe size?
Select a size based on water pressure, application, and plumbing requirements. Type K is for high-pressure needs, Type L is common for residential plumbing, and Type M is best for low-pressure applications.
3. Can I use copper pipes for both hot and cold water?
Yes, copper pipes are suitable for both hot and cold water systems due to their heat resistance and durability.
4. What is the difference between Type K, L, and M copper pipes?
Type K has the thickest walls and is used for underground and high-pressure applications. Type L is commonly used in homes, while Type M is the thinnest and used for low-pressure systems.
5. Do copper pipes corrode over time?
Copper is corrosion-resistant, but factors like water pH and environmental conditions can cause minor degradation over time. Proper maintenance and installation help extend their lifespan.
6. How long do copper pipes last?
Copper pipes can last 50 years or more, depending on water quality, installation methods, and maintenance.
7. Can I install copper pipes myself?
Yes, but it requires proper tools and knowledge of cutting, deburring, soldering, and fitting connections. Following plumbing codes is essential for a secure installation.
8. Are copper pipes better than PEX?
Copper pipes offer durability, heat resistance, and longevity, while PEX is flexible and easier to install. The choice depends on budget, application, and preference.
9. How do I prevent leaks in copper pipes?
Ensure proper soldering, use quality fittings, support pipes correctly, and avoid over-tightening connections to prevent leaks.
10. Are copper pipes environmentally friendly?
Yes, copper is 100% recyclable, making it a sustainable choice for plumbing systems.
